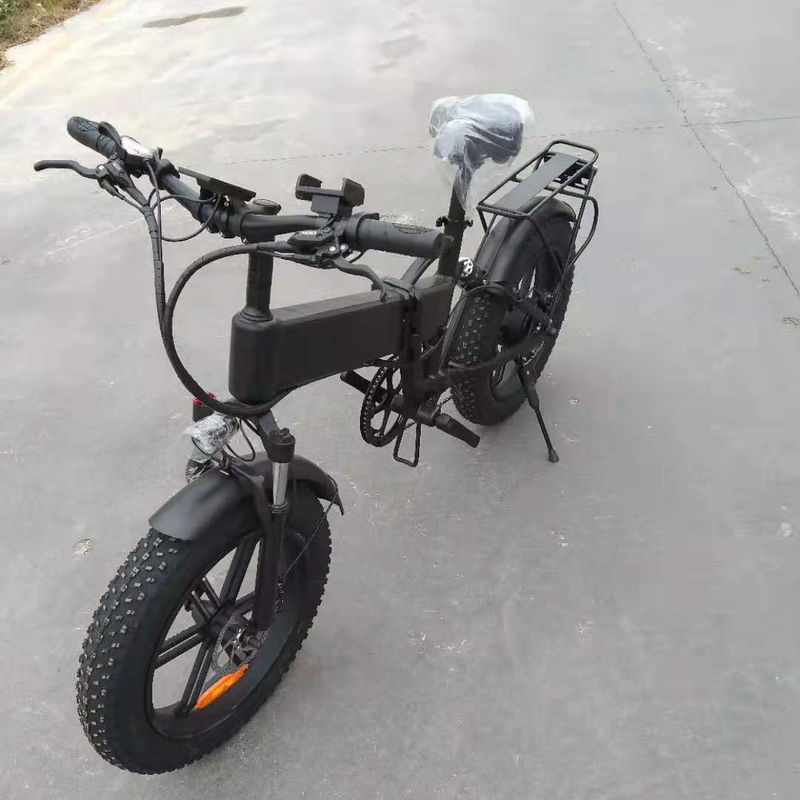

Full Suspension 20 Inch Electric Bike With 17.5ah/ 48v Lithium Battery

Model:

CM7 X2017.5AH

Frame size

20"

Color:

Black Blue White  Army Green or as requests

Net Weight:

27kg

Frame:

6061 aluminum alloy full suspension folding frame

Handelbar Sets:

6061 aluminum alloy

Fork:

Aluminum Alloy Hydraulic Suspension Fork

Shifting Lever:

Shimano TZ500-7

Front Derailleur

Shimano TZ50-7

Rear Derailleur:

Shimano RD-TZ500, TZ, GS 7-SPEED

Cranksets:

Prowheel Aluminum crank square hole 52T

Freewheel:

Shimano

Chain:

KMC 7s

Brake:

ZOOM HB875 Hydraulic disc brake with power cut off feature

Wheel

20"x4.00

Tire:

KENDA 20*4.0 Magnesium Alloy

Electric configuration:

Riding mode:

PAS mode (5 Shifts) Range 190-210KM

Pure Human Riding

Pure electric mode (5 Shifts) Range 90-100KM

Maximum speed:

≤25km/h, ( can be set faster as customer required )

Front light

LED Powered by battery

load:

150kg

Battery:

48V 17.5  Ah 18650 Lithium battery LG or  Samsung

( can be changed as customer required )

Charger:

Over voltage,Over current Protection,etc.

Motor:

rear drive 48v 750w brushless, Bafang brand. waterproof rating IP54

( can be changed to more powerful motor as customer required )

LCD Display

OMT-S700 LCD Data display function, setting function: Waterproof rating: IP54

Power assist Sensor :

KDS Left-load 12-point Holzer-intensive speed sensor Waterproof: IP54

Controller

5 Shifts intelligent control system

Wire connector:

All cables are Waterproof Integrated wires
